Description
Product Highlights:
-
Sleek Contemporary Design – Ultra-slim 50mm profiles with customizable arch top configurations
-
Superior Thermal Performance – Polyamide thermal break technology (U-value ≤1.4)
-
Weatherproof Construction – IP54 rated for water/air tightness
-
Smooth Operation – Dual-wheel stainless steel tracking system
Technical Specifications:
▸ Frame Material: 6063-T5 aluminum alloy
▸ Glass Options:
-
Standard: 5mm clear + 12mm argon + 5mm Low-E
-
Upgrade: Triple glazing or laminated security glass
▸ Operation: Smooth sliding mechanism (tested to 100,000 cycles)
▸ Maximum Panel Size: 1.5m width × 2.4m height
▸ Air Infiltration: ≤0.5 m³/(h·m²) @ 100Pa
▸ Water Tightness: ≥300Pa

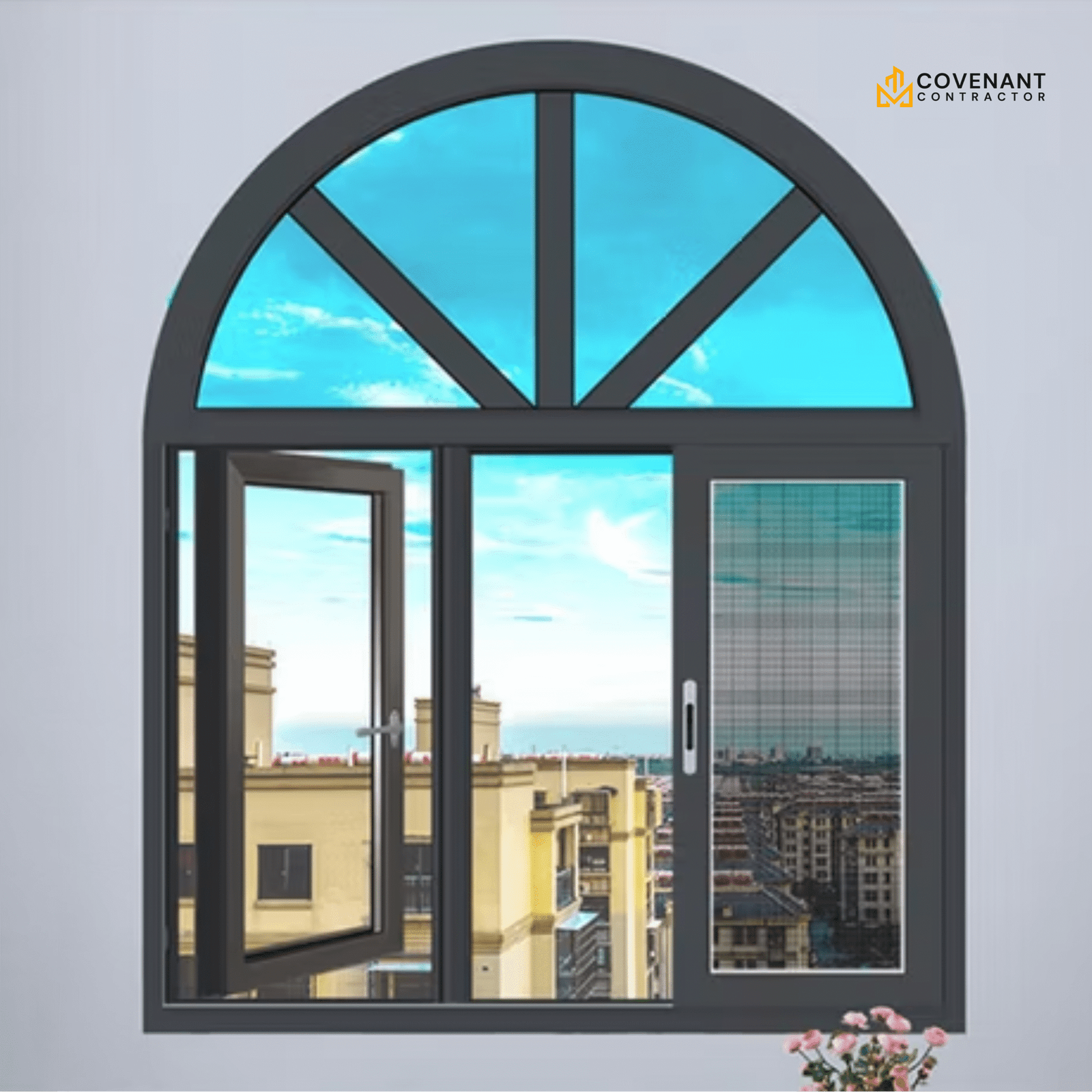

Arch Top Options:
✓ Full arch top design
✓ Semi-circular arch
✓ Gothic arch
✓ Custom radius configurations
